Protected Steel Coil & Roof Panel..
| |

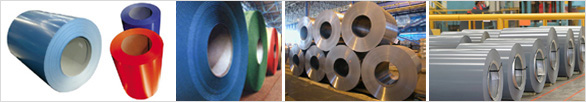

Color Coated Coils :
We are supplying color coated coils of ranging 0.2mm to 1mm & customized width upto 1220mm coil weight max upto 5 tons. Material used for color coating Galvanized / Aluminium / Galvalume.
Color coated profiled roofing sheets :
We are also supplying color coated as well as powder coated profiled roofing sheets.
Cut to length color coated sheet. |
|
| |
|
|
| |
|
|
| |
|
|
| |
S. No. |
Contains |
Specification |
01 |
Base Metal |
Galvanished, Galvaloome, Stainless Steel & Aluminum |
02 |
Thickness |
0.20 mm to 1.0 mm |
03 |
Width |
600 mm to 1250 mm |
04 |
Coil Weight |
5.0 Ton(max) |
05 |
Coil I.D. |
508 mm |
06 |
Clil O.D. |
1650 mm(max) |
07 |
Coating Thickness |
50 micron to 200 micron |
08 |
Hardness |
Soft, Medium Hard |
09 |
Finishes |
Smooth, Matt, Semiglass, High Glass, Textured, Structured |
10 |
Colors |
As per RAL Shades / Customers Requirement |
11 |
Guard Film |
OPtional |
12 |
Standard |
STM-A755, IS-14246-1995, EN-101169-1, JIS G-3312 |
13 |
Paint System |
1. Primers - EPOXY, Polyster, Universal.
2. Top Coat -
regular maodified polyster (RMP), silicone modified polyster
(SMP), Super durable polyster(SDP), Poly vinyldene
flouride(PVDF), Poly Urethane(PU), Acrylics, Plastisol
Metalics. |
14 |
Composition of Metal |
(A) Bare Meytal
(B) Zinc Coat / Galvaloom
(C) Pretreatmetn
(D) Passivation
(E) Primer
(F) Topcoat
(G) Back Coat
(H) Guard Film (optional) |
|
|
| |
|
|
| |
|
|
|
|
